CQ Series 1-10KVA High Frequency Online UPS with Dual Conversion and Wide Input Voltage Range for Industrial Use

CQ Series 1-10KVA High Frequency Online UPS with Dual Conversion and Wide Input Voltage Range for Industrial Use

CQ Series 1-10KVA High Frequency Online UPS with Dual Conversion and Wide Input Voltage Range for Industrial Use
video
CQ Series 1-10KVA High Frequency Online UPS with Dual Conversion and Wide Input Voltage Range for Industrial Use
Detail produk:
Tempat asal: Cina
Nama merek: HERONG
Sertifikasi: CO, CE, ISO
Nomor model: C03T
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: USD 1-1000
Kemasan rincian: Kemasan standar atau sesuai permintaan pelanggan
Waktu pengiriman: 15-20 hari kerja setelah menerima pembayaran
Syarat-syarat pembayaran: L/C,D/A,D/P,T/T,Western Union
Menyediakan kemampuan: 1000 per bulan
Kontak
Semua produk
Kios Mesin Penjual Otomatis (133)
kios layanan mandiri (68)
Mesin ATM Tunai (170)
Mesin Setoran Tunai (68)
Kios POS Swalayan (23)
kios pembayaran mandiri (30)
Kios Pemesanan Sendiri (52)
Mesin Kios Tiket (22)
Kios Penukaran Mata Uang (10)
Kios Pemerintah (17)
Mesin Teller Video (15)
Kios Bitcoin (9)
Suku Cadang ATM (195)
Suku Cadang Kios (17)
Modul Mesin Perbankan (123)
Detil Deskripsi produk

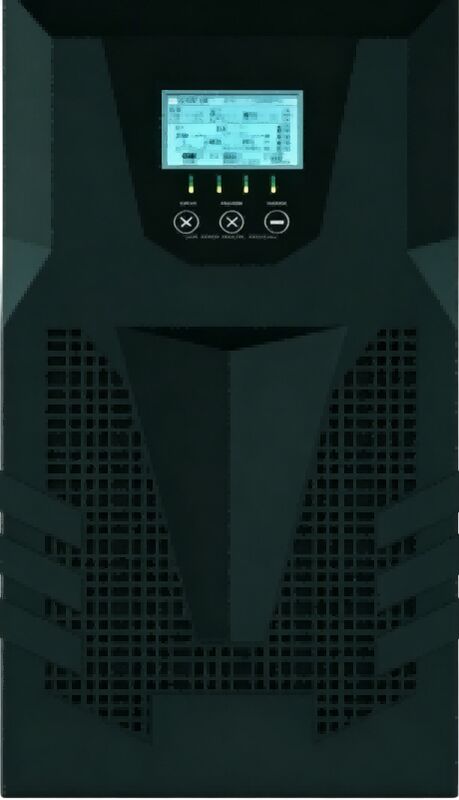

CQ Series 1-10KVA High Frequency Online UPS
High-frequency online UPS with dual conversion and wide input voltage range, designed for reliable power protection in demanding environments.
Product Advantages
  • Model: HERONG CQ Series 1-10kVA high-frequency online UPS, single-input single-output
  • Control System: Fully digital & microprocessor control; double-sided PCB; high dynamic regulation, low distortion, strong impact resistance
  • Output: PF 1.0, pure sine wave, 1-12A adjustable charging current
  • Performance: Zero transfer time; 0-100% load transition without bypass; wide input frequency 40-70Hz
  • Protection: Full protection (over/under voltage, phase sequence, battery overcharge/over-discharge, overload, short-circuit, overheat, noise & surge); ultra-wide input voltage for harsh environments
  • Startup: DC cold start & auto restart when mains resumes
  • Self-Diagnosis: Power-on automatic circuit check to prevent damage
  • Display & Monitoring: LCD real-time status; intelligent fault detection; optional SNMP/RS232/Taiyun for remote network monitoring
  • Battery Management: Off-line charging available; avoids low-voltage startup failure
  • Compatibility: Output voltage 208/220/230/240VAC adjustable; generator compatible
  • Design: High power density; saves up to 35% installation space
  • Technology: Dual-conversion; isolates undervoltage, overvoltage, harmonics, frequency fluctuation
  • Efficiency: High energy-saving; complies with GB/T 14715-2017
  • Certifications: Input overcurrent protection certified; control unit meets GB5465.2; PCB complies with SELV standard
Application Areas
Various industries including rail transit, data centers, telecommunications, banking and securities, transportation, power generation, and manufacturing.
Detailed Product Configuration
Model of this factoryCQ1K (S)CQ2K (S)CQ3K (S)CQ6K (S)CQ10K (S)
Phase
Single-phase grounding
Capacity

1000 VA / 1000 W2000 VA / 2000 W3000 VA / 3000 W6000 VA / 6000 W10000 VA / 10000 W
Input
Voltage range110-300 VAC at 60% load
160-300 VAC at 100% load		110-300 VAC at 50% load
176-300 VAC at 100% load
Frequency range40Hz ~ 70 Hz
Power factor1
Output
Output voltage220 VAC ±1% (adjustable for panels 208,220,230, and 240)
Voltage range (Battery mode)± 1%
Frequency range (synchronization correction range)47-53 Hz or 57-63 Hz
Frequency range (Battery mode)50 Hz (60 Hz optional) ± 0.25 Hz
Rush Ratio3:1
Harmonic distortion≤ 2% THD (linear load)
≤ 5% THD (non-linear load)
Switching Period
AC to DC0ms
Invert to bypass0ms
Overload
AC pattern30 minutes at 102%-110% load; 10 minutes at 110%-130% load
30 seconds at 130%-150% load; 500 ms at >150% load
Battery Mode10 minutes at 102%-110% load; 1 minute at 110%-130% load
10 seconds at 130%-150% load; 500 ms at >150% load
Wave formPure sine wave
Productivity
AC pattern95%
Battery Mode92%94.8%
Battery - Standard Font
Battery Model12V / 7AH
Quantity246 (8 optional)12 (14 optional)16
Maximum charging current1.0 A (maximum)1A,2A,3A,4A,5A,6A,7A,8A,9A,10A adjustable
Charging voltage27.5VDC ± 1%55VDC ± 1%82.1(110)VDC ± 1%165(192.5)VDC ± 1%220VDC ± 1%
Battery - Long-lasting Model
Battery ModelDepends on the applicant
Quantity368Sections 16-20
Maximum charging currentPreset: 6A ± 10%, adjustable range: 1-12A
Charging voltage41.0VDC ± 1%82.1VDC ± 1%110VDC ± 1%220 VDC ± 1% (based on 16 cells)
Display
LCD or LED displayLoad size, battery capacity, mains power mode, battery mode, bypass mode, fault indicator
Alarm Report
Battery ModeIt rings every 4 seconds
The battery is lowIt rings once every second
OverloadIt rings once every second
WrongContinuous ringing
Outline Dimension - Standard Font
Size: Depth x Width x Height (mm)284x145x213395x145x213450x192x335450x192x730 (including wheels)
Net weight (kg)7.6812.123.740.7850.1
Outline Dimension - Long-lasting Model
Size: Depth x Width x Height (mm)284x145x213395x145x213380x145x213450x192x335
Net weight (kg)3.975.365.779.4210.4
Service Environment
Temperature and HumidityRelative humidity <95% and temperature range 0-40°C (no condensation)
NoiseLess than 50 dBA at 1 meter
Control Supervisor
Smart RS-232Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, and Unix
Selectable SNMPPower management supports SNMP management and network management
When the output voltage is set to 208 VAC, the output power decreases to 90%.
No separate notice will be issued if there are any changes to the current product specifications.
CQ Series 1-10KVA High Frequency Online UPS with Dual Conversion and Wide Input Voltage Range for Industrial Use 0
Frequently Asked Questions
Q: Is your products have a warranty?
A: Yes. Every product has a warranty, normally it is 3 months.
Q: Do you have your own factory?
A: Of course yes. We have our own factory, we can build the molds and produce parts by ourselves.
Q: What's the lead time of your product?
A: Normally it is 3-7 days after payment. The lead time is related to the quantity you ordered.
