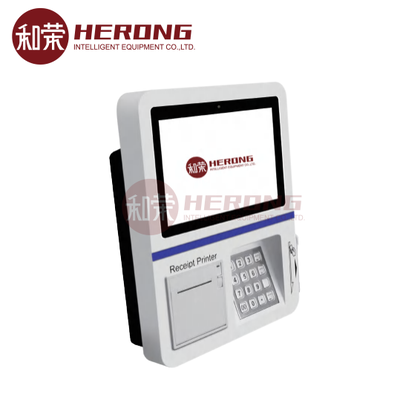

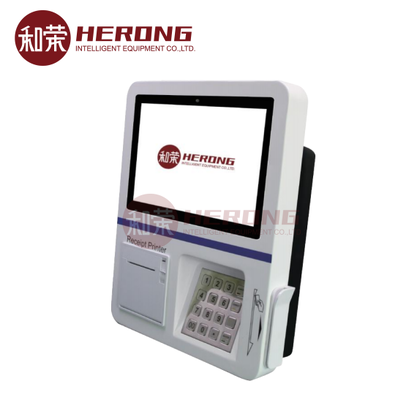

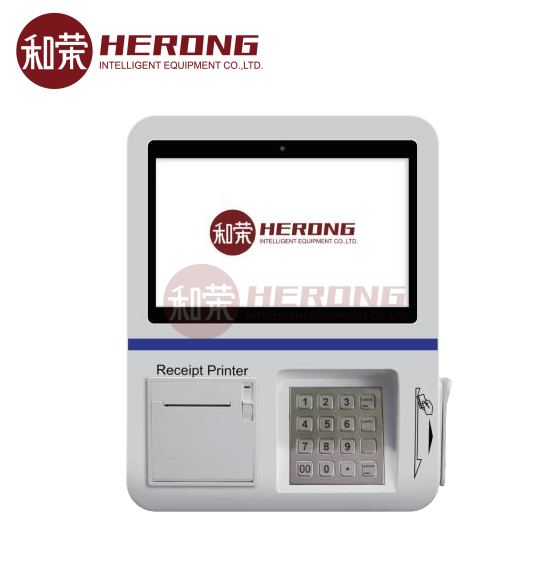

KIOSK-K36W Cashless KIOSK Self-Service Payment Terminal for Retail & Banking

KIOSK-K36W Cashless KIOSK Self-Service Payment Terminal for Retail & Banking

  • KIOSK-K36W Cashless KIOSK Self-Service Payment Terminal for Retail & Banking
  • KIOSK-K36W Cashless KIOSK Self-Service Payment Terminal for Retail & Banking
  • KIOSK-K36W Cashless KIOSK Self-Service Payment Terminal for Retail & Banking
KIOSK-K36W Cashless KIOSK Self-Service Payment Terminal for Retail & Banking
Detail produk:
Tempat asal: Guangdong, Tiongkok
Nama merek: HE
Sertifikasi: CE/CCC/FCC/ROHS/ISO9001
Nomor model: KIOSK-K36W
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: Bisa dinegosiasikan
Kemasan rincian: Dengan kemasan standar atau sesuai dengan permintaan pelanggan
Waktu pengiriman: 15-20 hari
Syarat-syarat pembayaran: L/C,D/P,T/T,Western Union
Menyediakan kemampuan: 1000 Potongan Per Bulan
Kontak
Detil Deskripsi produk
Performa Kuat: AIoT-3568A (4+32), Android 11, Quad-core Cortex-A55 hingga 2,0GHz Keamanan tinggi: Sesuai dengan EMV & PCI, kamera pengenalan wajah, fungsi anti-skimming
Menampilkan: 10.1 Layar Sentuh LCD Warna TFT, Filter Privasi (opt.), Dapat Dibaca di Bawah Sinar Matahari Desain Modular: Dapat disesuaikan dengan modul opsional

KIOSK-K36W Cashless KIOSK Self-Service Payment Terminal for Retail & Banking

Advantages:

Reliability
K36W provides users with maximum online uptime, minimal maintenance requirements, and the lowest
repair costs.

Security
K36W provides superior security for users. lt features an EMV-compliant card reader, and a PCl-compliant EPP, along with a facial recognition camera.

Flexibility
K36W features a modular design. lt supports a variety of optional modules.allowing users to customize according to their individual needs.

User-friendly
K36W features a highly humanized design, including chamfered corners, arear status indicator light and so on. And it supports the majority of SWITCH's online
transactions.



Specifications:

Dimensions Width 285mm
Height 360mm
Thickness 88mm
Net Weight 30kg
Backing plate and carton packaging weight 35kg
Backing plate and wood packaging weight 40kg



Summary:

Software
Compliant with CEN/XFS standard, support different protocols like: NDC, DDC, ISO8583, etc.
Security Lock Key Lock
Camera Binocular Camera (opt.), Facial Camera
Sensor Door Sensor, Infrared Sensor (opt.),Smoke Sensor (opt.), Light Sensor (opt.)
Others Explosion-proof Glass, DVR (opt.)
Industrial Control Host   AIoT-3568A (4+32), Android 11, Quad-core 64-bit Cortex-A55 Maximum main frequency 2.0GHz
  GPU ARM G52 2EE, supporting OpenGL ES 1.1/2.0/3.2
  GPU ARM G52 2EE, supporting OpenGL ES 1.1/2.0/3.2
  Vu1kan 1.1, supporting 4K 60fps H.265/H.264/VP9 video decoding
Cash Processing Unit Cash Bag 1 Unit
Capacity Capacity ≥15,000 banknotes, up to 200 banknotes per transaction, Speed ≥ 700PPM, Support continuous deposit
OCR Support Banknote Serial Number Recognition
Customer Interface Display 10.1” TFT Color LCD Touch Screen, Privacy Filter(opt.), Sunlight Readable
EPP PCI compliant, 4x4 metal EPP, 2x4 function keys, dust/water/vandal resistant, support customizable layout and braille key
Card Reader
EMV Swipe Card Reader, Contactless Card Reader(opt.)
Card Security

Anti-skimming

Receipt Printer Graphic Thermal Receipt Printer,E-journal
Light Device Guidance Light, Status Indicator Light, LED Electronic Screen Light (opt.), Logo Light (opt.)
Others Bar Code Reader, Fingerprint Reader (opt.),Speaker, Audio Jack
Environment Work Environment Temperature:-10~+65(+14~+149)(Indoor),-35~+75℃,(-31~+167)(Outdoor with heater)
Humidity: 20%~85%(No condensation)
Storage Environment Temperature: -20~+85(-4~+185)
Humidity: 5%~90%(No condensation)
Additional Module
SIU Control Board, Fan, Heater (opt.)


KIOSK-K36W Cashless KIOSK Self-Service Payment Terminal for Retail & Banking 0

KIOSK-K36W Cashless KIOSK Self-Service Payment Terminal for Retail & Banking 1

KIOSK-K36W Cashless KIOSK Self-Service Payment Terminal for Retail & Banking 2

Company Introduction:


KIOSK-K36W Cashless KIOSK Self-Service Payment Terminal for Retail & Banking 3


Herong Intelligent Equipment Co., Ltd. is a professional manufacturer integrating R&D, production, assembly, sales and service. Herong was established in 2016 and is located in Dongguan City, Guangdong Province, China.


We are proficient in various types of plastic molds and CNC hardware processing. We also specialize in vending machines, ATM/VTM machines, self-service kiosks, all other functional kiosks and their parts. Our factory has advanced mold and injection molding equipment, and has set up its own CNC machining center, which can perfectly undertake ATM accessories, auto accessories, household appliances, daily necessities, electronic products, medical equipment and other projects. We have professional equipment such as CNC punching machine, bending machine, laser cutting machine, spraying line, dust free workshop and all other related equipment. We can provide ODM/OEM service for customers. All the products we offer are certified by ISO9001, SGS, RoHs, CE, FCC, etc. For logistics, we can choose DHL, UPS, FedEx, sea or air, etc., it is up to our customers.


By continuously improving product quality and providing excellent service, we have maintained a good cooperative relationship with customers in more than 130 countries around the world.

Shipment:

KIOSK-K36W Cashless KIOSK Self-Service Payment Terminal for Retail & Banking 4

RFQ:
  • Q:what’s the condition of your product?
    A:Generally we can provide 4 conditions:new original,new generic,original used and original ref.
  • Q:Is your products have a warranty?
    A:Yes.Every product has a warranty,normally it is 3 months.
  • Q:Do you have your own factory?
    A: Of course yes.We have our own factory,we can build the molds and produce parts by ourselves.
  • Q:What’s the lead time of your product?
    A:Normally it is 3-7 days after payment.The lead time is related to the quantity you ordered.
